- Tumble Bolt – Bronze
- Dog Handle – Steel
- Bolt 5/8-11 – Zinc Plated Steel
- Nut 5/8-11 – Stainless Steel
- Gasket – Nitrile Rubber
-
- All of our raised watertight hatches meet ABS (American Bureau of Shipping) requirements for design and materials.
Description
Raised watertight hatches are strong and secure enclosures designed to be easily accessed when needed. They are universally used on all types of commercial vessels from tank barges, hopper barges, box barges and push-boats to OSVs and larger commercial vessels. Their simple design and quality steel construction help them meet long range trouble-free service requirements in the harshest environments.
Raised watertight hatches are strong and secure enclosures designed to be easily accessed when needed. They are universally used on all types of commercial vessels from tank barges, hopper barges, box barges and push-boats to OSVs and larger commercial vessels. Their simple design and quality steel construction help them meet long range trouble-free service requirements in the harshest environments.
Feature Description
Various standard coaming heights available (Custom coaming heights avilable upon request).
Other gasket material available upon request.
Various hardware options available:
– Steel, Stainless Steel, & Bronze Dog Handles (available with or without grease fittings).
– Bronze & Stainless Steel Tumble Bolts.
– Lug Bolts and nuts made from dissimilar metals to prevent galling and corrosion.
Flame screens available upon request (sold separately).
Various standard coaming heights available (Custom coaming heights avilable upon request).
Other gasket material available upon request.
Various hardware options available:
– Steel, Stainless Steel, & Bronze Dog Handles (available with or without grease fittings).
– Bronze & Stainless Steel Tumble Bolts.
– Lug Bolts and nuts made from dissimilar metals to prevent galling and corrosion.
Flame screens available upon request (sold separately).
Application
Raised watertight hatches are typically found along the gunnels of a barge as well as on the bow/ stern and on top of cargo compartments or tanks. They are used to access wing tanks, the rake compartment, cargo compartments etc. for venting, filling, and inspecting.
Raised watertight hatches are typically found along the gunnels of a barge as well as on the bow/ stern and on top of cargo compartments or tanks. They are used to access wing tanks, the rake compartment, cargo compartments etc. for venting, filling, and inspecting.
Material
Steel (ASTM A36)
Painted Primer Grey
Steel (ASTM A36)
Painted Primer Grey

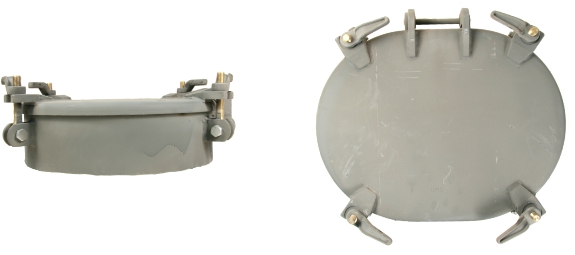

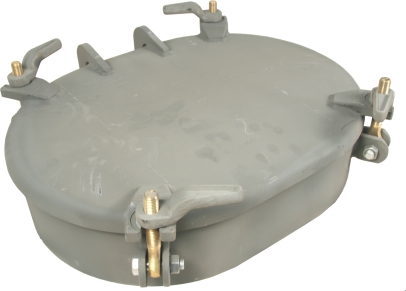

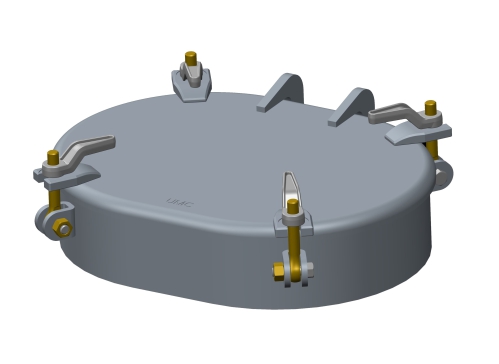

Model: UMC-456-5
| Model Number | Part Number | Description | Clear Opening In. (mm) | Weight Total Lbs (Kgs.) |
|---|---|---|---|---|
| UMC-174-5 | 01240-102A | Raised 4 Dog 15×23 Watertight Hatch | 15″ x 23″ (380 x 584) |
96 (44) |
| UMC-464-5 | 03800-101A | Raised 4 Dog 18×24 Watertight Hatch | 18″ x 24″ (457 x 610) |
106 (48) |
| UMC-174-5-SS | 01240-102S | Raised 4 Dog 15×23 Watertight Hatch (Stainless Steel) | 15″ x 23″ (380 x 584) |
96 (44) |
| UMC-174-12 | 01240-102E | Raised 4 Dog 15×23 Watertight Hatch 12″ Coaming | 15″ x 23″ (380 x 584) |
144 (65) |
| UMC-174-24 | 01240-102C | Raised 4 Dog 15×23 Watertight Hatch 23.6″ Coaming | 15″ x 23″ (380 x 584) |
226 (103) |
| UMC-464-5-SS | 03800-101S | Raised 4 Dog 18×24 Watertight Hatch (Stainless Steel) | 18″ x 24″ (457 x 610) |
106 (48) |
