Description
Features
- Tumble Bolt – Bronze
- Dog Handle – Stainless Steel
- Bolt 5/8-11 – Stainless Steel
- Nut 5-8-11 – Bronze
- Gasket – Nitrile Rubber
- All of our raised watertight hatches meet ABS (American Bureau of Shipping) requirements for design and materials.
Description
UMC’s Stainless Steel hatches are the perfect option for an enclosure in a harsh and caustic environment. Our stainless hatches are fabricated using high quality corrosion resistant 304 Stainless Steel that maintains excellent weld-ability to the deck of your vessel. We offer various Oval and Round Stainless Hatches that are raised or flush.
UMC’s Stainless Steel hatches are the perfect option for an enclosure in a harsh and caustic environment. Our stainless hatches are fabricated using high quality corrosion resistant 304 Stainless Steel that maintains excellent weld-ability to the deck of your vessel. We offer various Oval and Round Stainless Hatches that are raised or flush.
Feature Description
Custom coaming heights available upon request.
Other gasket material available upon request.
Various hardware options available:
– Steel, Stainless Steel, & Bronze Dog Handles (available with or without grease fittings).
– Bronze & Stainless Steel Tumble Bolts.
– Lug Bolts and nuts made from dissimilar metals to prevent galling and corrosion.
Flame screens available upon request (sold separately).
Custom coaming heights available upon request.
Other gasket material available upon request.
Various hardware options available:
– Steel, Stainless Steel, & Bronze Dog Handles (available with or without grease fittings).
– Bronze & Stainless Steel Tumble Bolts.
– Lug Bolts and nuts made from dissimilar metals to prevent galling and corrosion.
Flame screens available upon request (sold separately).
Application
Stainless raised watertight hatches are typically found along the gunnels of a barge as well as on the bow/ stern and on top of cargo compartments or tanks. They are used to access wing tanks, the rake compartment, cargo compartments etc. for venting, filling, and inspecting. Raised watertight hatches that feature a ullage hatch are also commonly used on tank barges where the ullage is used as a vent or an inspection port to measure or verify cargo.
Stainless raised watertight hatches are typically found along the gunnels of a barge as well as on the bow/ stern and on top of cargo compartments or tanks. They are used to access wing tanks, the rake compartment, cargo compartments etc. for venting, filling, and inspecting. Raised watertight hatches that feature a ullage hatch are also commonly used on tank barges where the ullage is used as a vent or an inspection port to measure or verify cargo.
Material
304 Stainless Steel
304 Stainless Steel
| Model Number | Part Number | Description | Clear Opening In. (mm) | Weight Total Lbs (Kgs.) |
|---|---|---|---|---|

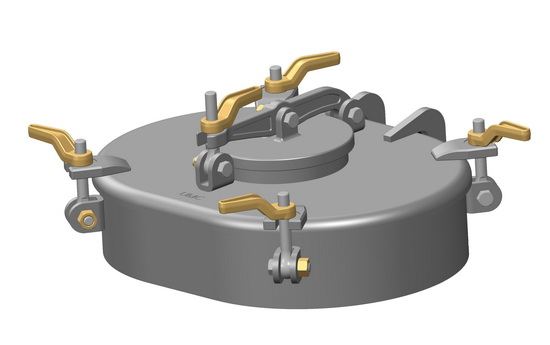

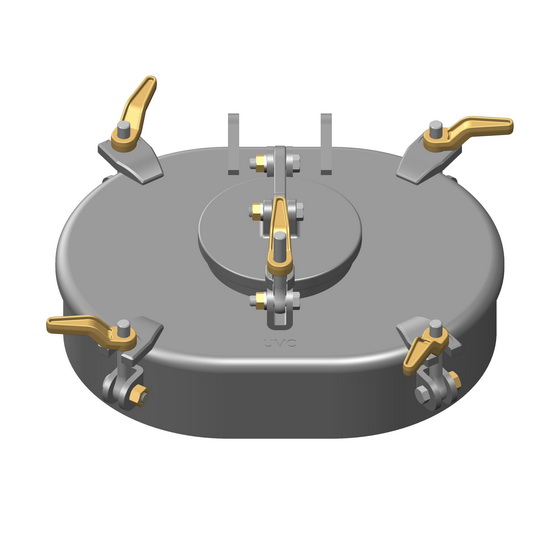

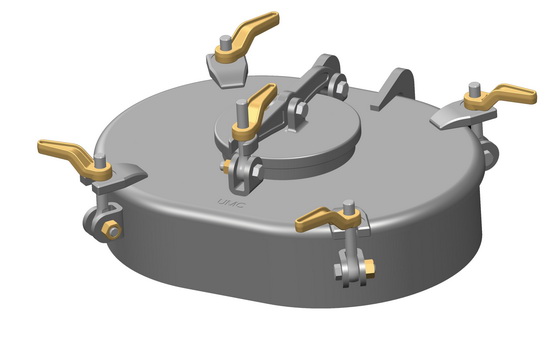

| UMC-464-5-SS / 144-SS | 03800-105S | Raised 4 Dog 18×24 Watertight Hatch + 8″ Ullage & Hasp (Stainless Steel) |
18″ x 24″ (457 x 609) Ullage: 7″ (178) |
128 (58) |
