Features
-
- Low profile compact design saves deck space
- Hand lever operated brake for controlled load release
- Hand wheel with spinner knob for fast take-up
- Ratchet lever for final tensioning
- Machine cut gearing
- Connector pin and yoke allows 360 degree rotation
- Unique pivot pin mounting (no D-Ring required)
- Front mounted rope guard aligns cable with drum
-
- Fully enclosed gearing and drum for safe operation
- Cast steel gear coupled with heat treated steel pinion gear for ultimate strength and durability
- Galvanized finish for corrosion resistance
Description
UMC’s barge connecting winches have been connecting barges in North and South America for over 15 years. Our winches are built from the highest quality materials and designed for continued trouble free operation.
UMC’s barge connecting winches have been connecting barges in North and South America for over 15 years. Our winches are built from the highest quality materials and designed for continued trouble free operation.
Key Features
Ultimate Capacity: 80,000 lbs.
Typical Line Capacity: 10,000 lbs.
Drum Capacity 3/4″: 95′
Drum Capacity 7/8″: 85′
Drum Capacity 1″: 70′
Ultimate Capacity: 80,000 lbs.
Typical Line Capacity: 10,000 lbs.
Drum Capacity 3/4″: 95′
Drum Capacity 7/8″: 85′
Drum Capacity 1″: 70′
Application
Barge Connecting Winches are designed primarily to be used with wire rope for barge coupling. They are typically placed on the port and starboard corners of the line deck and stern of a barge.
Barge Connecting Winches are designed primarily to be used with wire rope for barge coupling. They are typically placed on the port and starboard corners of the line deck and stern of a barge.
Notes
| Model Number | Part Number | Description | Handeling | Weight Total Lbs (Kgs.) | Autocad PDF/DXF/XML |
|---|---|---|---|---|---|

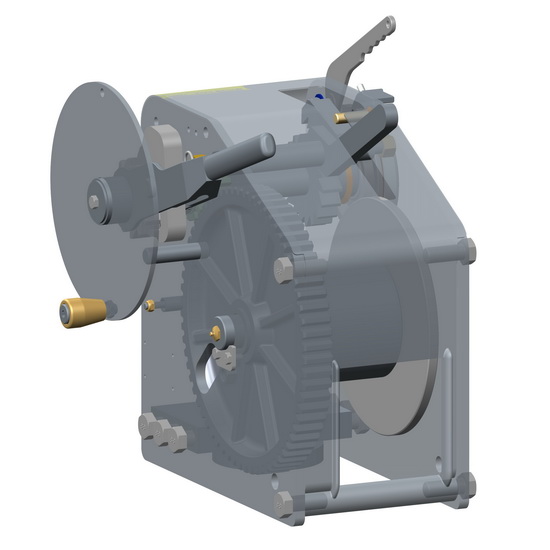

| UMC-BC-40-S-RH | 08321-103A | 40 Ton Manual Swivel Winch (Galvanized) | RH | 436 (198) | |
| UMC-BC-40-S-LH | 08321-103B | 40 Ton Manual Swivel Winch (Galvanized) | LH | 436 (198) |
