Description
Description
UMC® offers a wide range of Button Chocks for any deck application. Our Button Chocks range from a minimum throat diameter of 6” up to a throat diameter of 10”. All of UMC’s Chocks are made from ASTM A27 cast steel and are built to withstand the toughest conditions.
UMC® offers a wide range of Button Chocks for any deck application. Our Button Chocks range from a minimum throat diameter of 6” up to a throat diameter of 10”. All of UMC’s Chocks are made from ASTM A27 cast steel and are built to withstand the toughest conditions.
Feature Description
UMC’s Button Chocks are sold as-cast with no surface paint or finish to maintain quick, easy and safe weld-ability to the deck of any barge or workboat.
UMC’s Button Chocks are sold as-cast with no surface paint or finish to maintain quick, easy and safe weld-ability to the deck of any barge or workboat.
Application
Button Chocks are designed primarily to hold or secure the eye of a line or wire when making up a tow.
Button Chocks are designed primarily to hold or secure the eye of a line or wire when making up a tow.
Material
ASTM A27-70-36 Cast Steel
ASTM A27-70-36 Cast Steel
Model Number | Part Number | Description | Throat Diameter in. (mm) | Throat Radius in. (mm) | Weight Total Lbs (Kgs.) |
---|---|---|---|---|---|

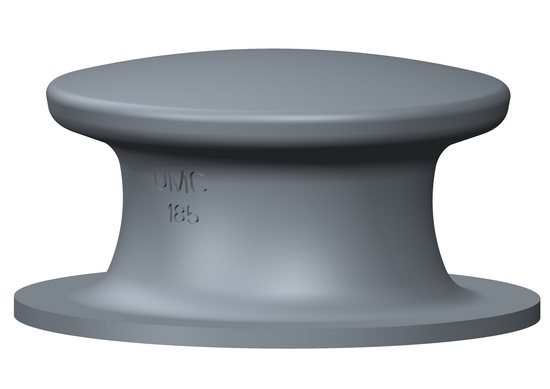

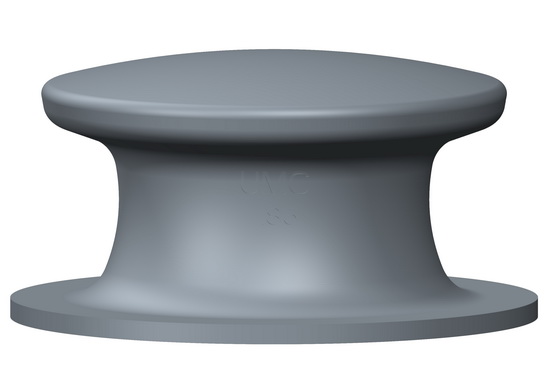

UMC-185 | 01170-301A | 10″ Button Chock | 10 (254) | 6 (152) | 144 (65) |
