Description

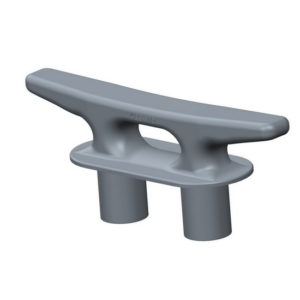

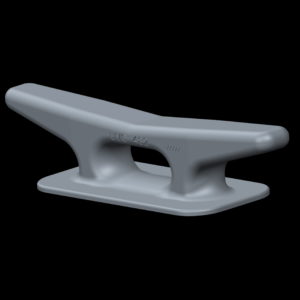

UMC® offers a wide range of Cleats for any deck application. Sizes range from 8″ long weighing 3lbs to 18” long weighing 24lbs. Our Cleats are made from ASTM A27 cast steel and are built to withstand the toughest conditions.
UMC® offers a wide range of Cleats for any deck application. Sizes range from 8″ long weighing 3lbs to 18” long weighing 24lbs. Our Cleats are made from ASTM A27 cast steel and are built to withstand the toughest conditions.
Feature Description
UMC’s Cleats are sold as-cast with no surface paint or finish to maintain quick, easy and safe weld-ability to the deck of any barge or workboat.
UMC’s Cleats are sold as-cast with no surface paint or finish to maintain quick, easy and safe weld-ability to the deck of any barge or workboat.
Application
Cleats are designed primarily to be used with line for checking, or mooring. They are typically placed along the gunnels of a push-boat/ tow-boat or along a dock.
Cleats are designed primarily to be used with line for checking, or mooring. They are typically placed along the gunnels of a push-boat/ tow-boat or along a dock.
Material
ASTM A27-70-36 Cast Steel
ASTM A27-70-36 Cast Steel
| Model Number | Part Number | Description | Weight Total Lbs (Kgs.) |
|---|---|---|---|
| UMC-CL-8-LB | 08721-301A | 8″ Cleat Large Base | 3.00 (1.36) |
| UMC-CL-10-LB | 08721-302A | 10″ Cleat Large Base | 4.25 (1.93) |
| UMC-CL-12-LB | 08721-303A | 12″ Cleat Large Base | 8.00 (3.63) |
| UMC-CL-14-LB | 08721-304A | 14″ Cleat Large Base | 13.00 (5.90) |
| UMC-CL-16-LB | 08721-305A | 16″ Cleat Large Base | 18.25 (8.28) |
| UMC-CL-18-LB | 08721-306A | 18″ Cleat Large Base | 24.00 (10.89) |
