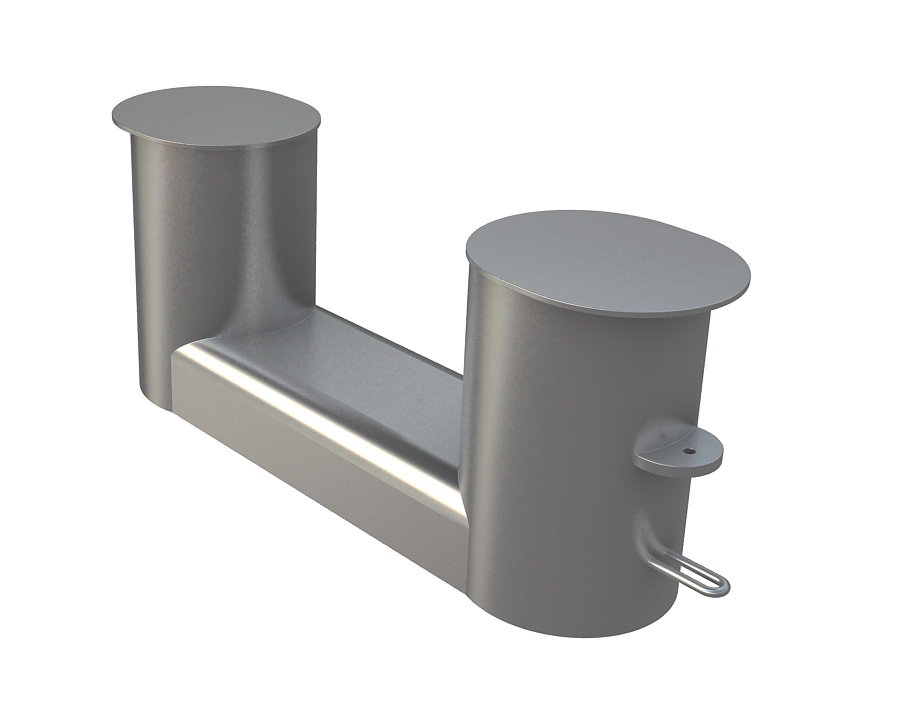

UMC® offers several Fabricated Double Bitts for any deck application. Sizes range from a bollard diameter of 18” weighing 1412lbs up to a bollard diameter of 24” weighing nearly 2950lbs. Our Fabricated Double Bitts are made from SM490A steel plate and are built to withstand the toughest conditions. They are also available with Stainless Steel Bollards.
UMC® offers several Fabricated Double Bitts for any deck application. Sizes range from a bollard diameter of 18” weighing 1412lbs up to a bollard diameter of 24” weighing nearly 2950lbs. Our Fabricated Double Bitts are made from SM490A steel plate and are built to withstand the toughest conditions. They are also available with Stainless Steel Bollards.
Feature Description
UMC’s Fabricated Double Bitts are sold painted with a durable epoxy and polyurathane finish.
UMC’s Fabricated Double Bitts are sold painted with a durable epoxy and polyurathane finish.
Application
Double Bitts are designed primarily to be used with line or wire for mooring.
Double Bitts are designed primarily to be used with line or wire for mooring.
Material
SM490A Steel Plate or SUS316L Stainless Steel
SM490A Steel Plate or SUS316L Stainless Steel
| Model Number | Part Number | Description | Bollard Diameter in. (mm) | SWL (ton) | Weight Total Lbs (Kgs.) |
|---|---|---|---|---|---|
| UMC-500 | 01126-301A | 18″ Fabricated Double Bitt | 18 (457.20) | 77 | 1412 (640) |
| UMC-500-SS | 01126-301B | 18″ Stainless Steel Fabricated Double Bitt | 18 (457.20) | 77 | 1412 (640) |
| UMC-600 | 01127-301A | 24″ Fabricated Double Bitt | 24 (609.40) | 154 | 2950 (1338) |
| UMC-600-SS | 01127-301B | 24″ Stainless Steel fabricated Double Bitt | 24 (609.40) | 154 | 2590 (1338) |
