Description
Features
- Stainless steel upper coaming ring at seal area for corrosion resistance.
- Hand wheel operated sealing mechanism.
- Large swivel arm for easy movement of hatch cover.
- Neoprene Gasket.
Feature Description
Optional Ullage or Sight-Glass available upon request welded to hatch cover.
Other gasket materials available.
Optional Ullage or Sight-Glass available upon request welded to hatch cover.
Other gasket materials available.
Application

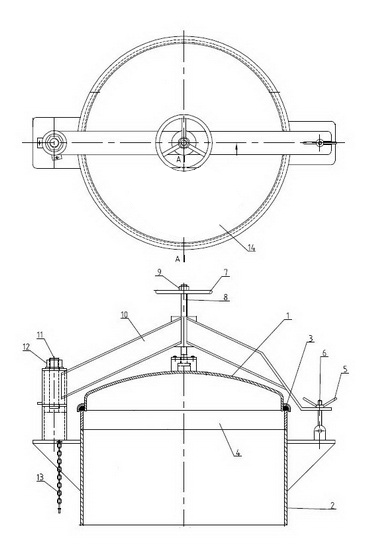

Expansion domes are typically found on tank barges. They are commonly used to access cargo compartments for venting, filling, and inspecting.
Expansion domes are typically found on tank barges. They are commonly used to access cargo compartments for venting, filling, and inspecting.
Material
Steel (ASTM A36) + 304 Stainless Steel
Painted Primer Grey
Steel (ASTM A36) + 304 Stainless Steel
Painted Primer Grey
| Model Number | Part Number | Description | Weight Total Lbs (Kgs.) | Autocad PDF/DXF/XML |
|---|---|---|---|---|

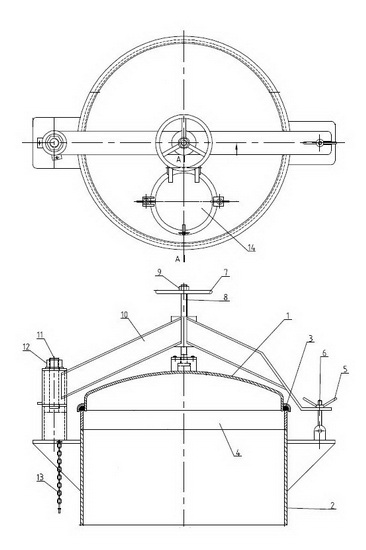

| UMC-450-3624-SG | 03800-141B | 36×24 Expansion Dome w/ Sight Glass | 828 (376) | |
| UMC-450-4224-SG | 03800-141A | 42×24 Expansion Dome w/ Sight Glass | 1012 (459) |
