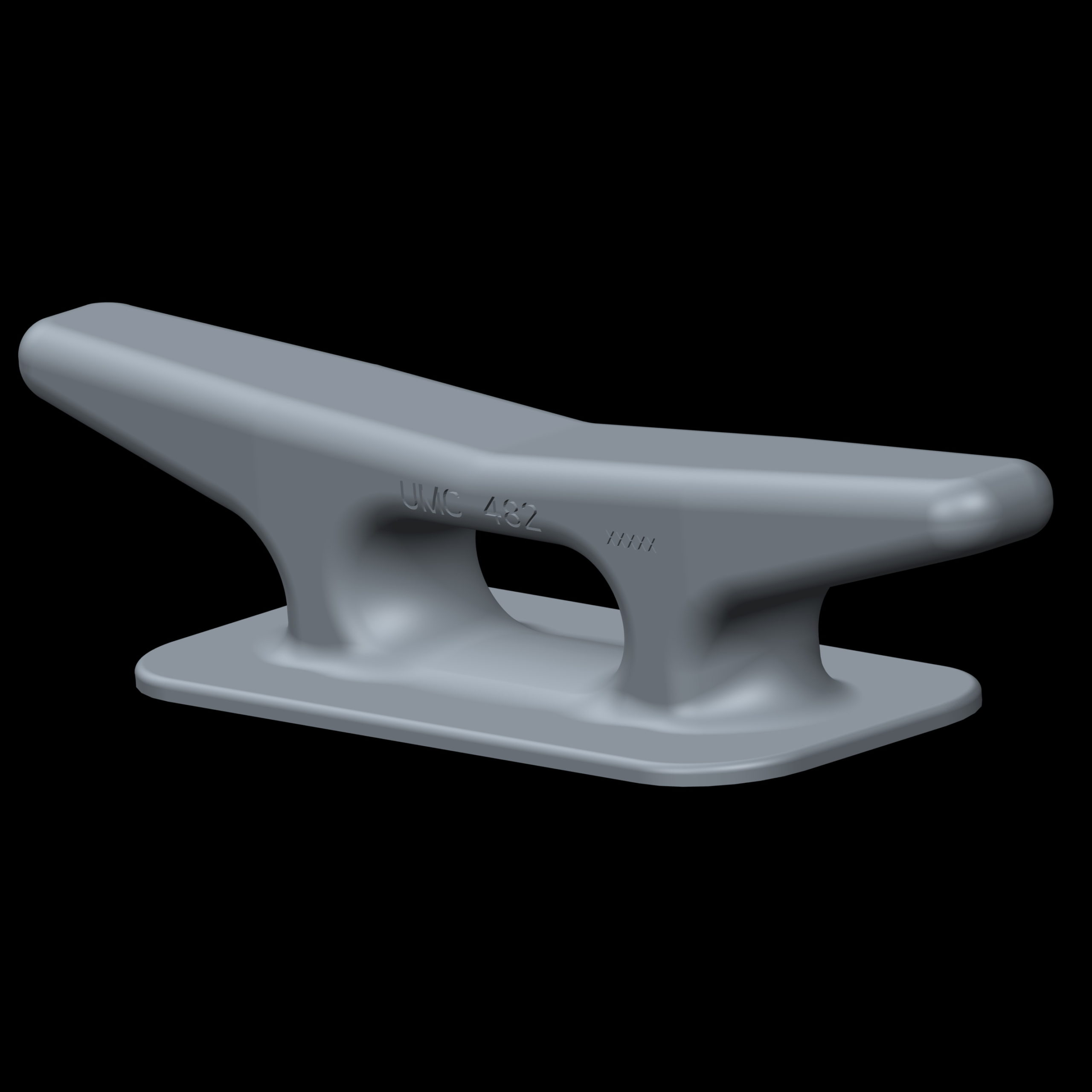

UMC® offers a wide range of Kevel Chocks for any deck application. Sizes range from 24” long weighing 50lbs to up 48” long weighing 220lbs. Our Kevel Chocks are made from ASTM A27 cast steel and are built to withstand the toughest conditions.
UMC® offers a wide range of Kevel Chocks for any deck application. Sizes range from 24” long weighing 50lbs to up 48” long weighing 220lbs. Our Kevel Chocks are made from ASTM A27 cast steel and are built to withstand the toughest conditions.
Feature Description
UMC’s Kevel Chocks are sold as-cast with no surface paint or finish to maintain quick, easy and safe weld-ability to the deck of any barge or workboat.
UMC’s Kevel Chocks are sold as-cast with no surface paint or finish to maintain quick, easy and safe weld-ability to the deck of any barge or workboat.
Application
Kevel Chocks are designed primarily to be used with line or wire for barge coupling, checking, or mooring. They are typically placed along the gunnels of a barge or work-boat.
Kevel Chocks are designed primarily to be used with line or wire for barge coupling, checking, or mooring. They are typically placed along the gunnels of a barge or work-boat.
Material
ASTM A27-70-36 Cast Steel
ASTM A27-70-36 Cast Steel
| Model Number | Part Number | Description | Weight Total Lbs (Kgs.) | SWL (ton) |
|---|---|---|---|---|
| UMC-30 | 02990-301A | 24″ Kevel Chock | 50 (23) | |
| UMC-KC30 | 01081-301A | 30” Kevel Chock | 75 (34) | |
| UMC-482 | 01080-301A | 36” Kevel Chock | 107 (48.50) | |
| UMC-483 | 01090-301A | 42” Kevel Chock | 168 (76) | |
| UMC-484 | 01100-301A | 48” Kevel Chock | 220 (100) |
