Description

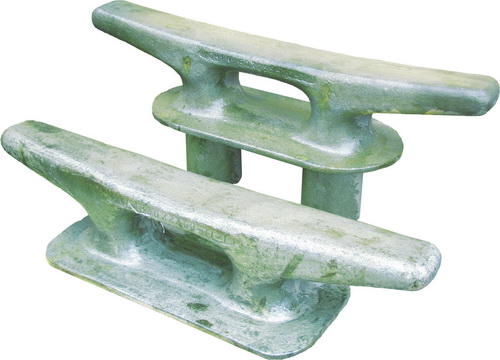

UMC® offers a several Thru-Deck Kevel Chocks for any deck application. Available sizes are 42” long weighing 220lbs and 48” long weighing 380lbs. Our Kevel Chocks are made from ASTM A27 cast steel and are built to withstand the toughest conditions.
UMC® offers a several Thru-Deck Kevel Chocks for any deck application. Available sizes are 42” long weighing 220lbs and 48” long weighing 380lbs. Our Kevel Chocks are made from ASTM A27 cast steel and are built to withstand the toughest conditions.
Feature Description
UMC’s Kevel Chocks are sold as-cast with no surface paint or finish to maintain quick, easy and safe weld-ability to the deck of any barge or workboat.
UMC’s Kevel Chocks are sold as-cast with no surface paint or finish to maintain quick, easy and safe weld-ability to the deck of any barge or workboat.
Application
Kevel Chocks are designed primarily to be used with line or wire for barge coupling, checking, or mooring. They are typically placed along the gunnels of a barge or work-boat. UMC’s Thru Deck Kevel Chocks are the perfect solution for towing applications where more rigidity is needed to prevent the deck fitting from tearing off the deck under extreme load situations.
Kevel Chocks are designed primarily to be used with line or wire for barge coupling, checking, or mooring. They are typically placed along the gunnels of a barge or work-boat. UMC’s Thru Deck Kevel Chocks are the perfect solution for towing applications where more rigidity is needed to prevent the deck fitting from tearing off the deck under extreme load situations.
Material
ASTM A27-70-36 Cast Steel
ASTM A27-70-36 Cast Steel
| Model Number | Part Number | Description | Weight Total Lbs (Kgs.) | Autocad PDF/DXF/XML |
|---|---|---|---|---|

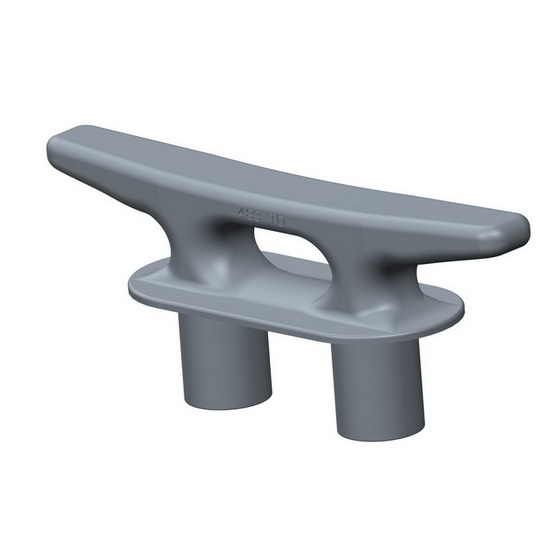

| UMC-483TD | 01091-301A | 42″ Thru Deck Kevel Chock | 220 (100) | Download PDF Download DXF |
| UMC-484TD | 01102-301A | 48″ Thru Deck Kevel Chock | 380 (172) | Download PDF Download DXF |
