Description
UMC offers several styles of barge corner plates. Sizes range from 50lbs to up 90lbs. Our barge corners are made from ASTM A27 cast steel and are built to withstand the toughest conditions.
UMC offers several styles of barge corner plates. Sizes range from 50lbs to up 90lbs. Our barge corners are made from ASTM A27 cast steel and are built to withstand the toughest conditions.
Feature Description
UMC’s Corner Plates are sold as-cast with no surface paint or finish to maintain quick, easy and safe weld-ability to any barge.
UMC’s Corner Plates are sold as-cast with no surface paint or finish to maintain quick, easy and safe weld-ability to any barge.
Application
Corner plates are designed primarily to be used as barge corners.
Corner plates are designed primarily to be used as barge corners.
Material
ASTM A27-70-36 Cast Steel
ASTM A27-70-36 Cast Steel
| Model Number | Part Number | Description | Weight Total Lbs (Kgs.) | Autocad PDF/DXF/XML |
|---|---|---|---|---|
| UMC-486-6 | 02802-301A | 6″ Round Cast Steel Barge Corner | 30.7 (14) | |
| D12RA | 02802-304A | 6″R x 4″R x 16.75 LG Barge Corner | 76 (34) | |

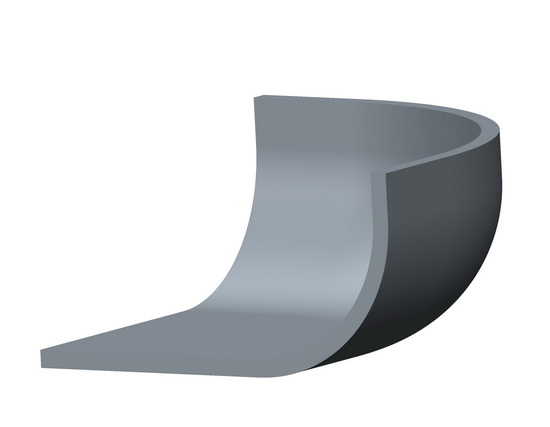

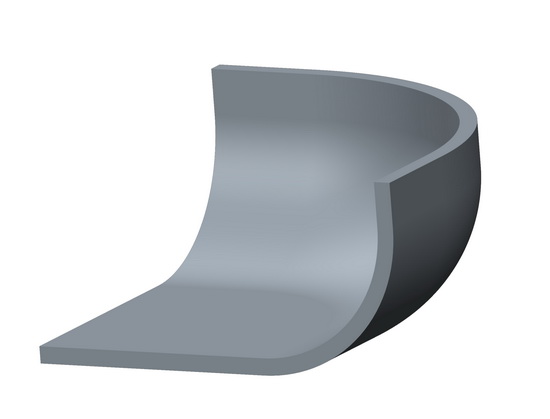

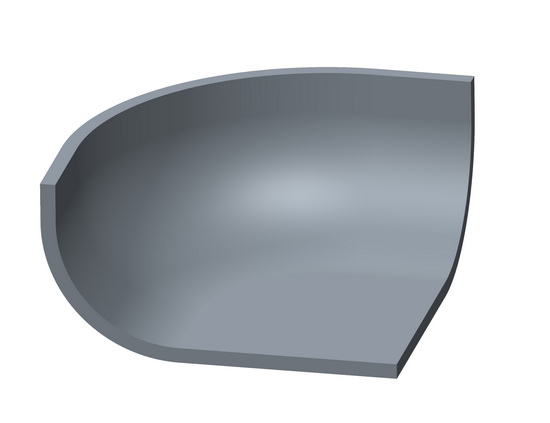

| D12RB | 02802-305A | 6″R x 8.75″R x 17.5″LG Barge Corner | 89 (40) |
