Description
Description

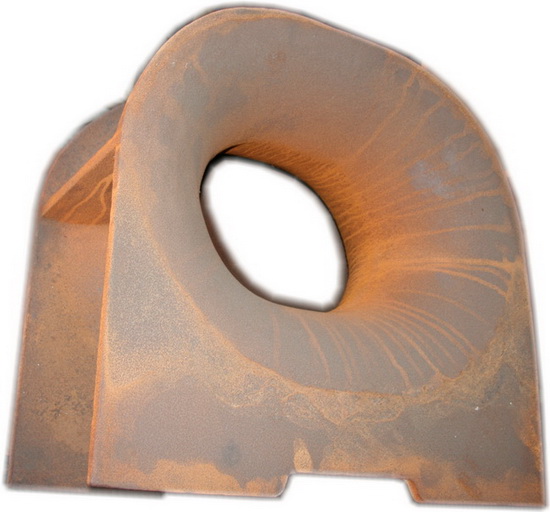

UMC’s Panama Chocks are the perfect solution for mooring applications. They are made from ASTM A27 cast steel and are built to withstand the toughest conditions.
UMC’s Panama Chocks are the perfect solution for mooring applications. They are made from ASTM A27 cast steel and are built to withstand the toughest conditions.
Feature Description
UMC’s Panama Chocks are sold as-cast with no surface paint or finish to maintain quick, easy and safe weld-ability to the deck of any vessel.
UMC’s Panama Chocks are sold as-cast with no surface paint or finish to maintain quick, easy and safe weld-ability to the deck of any vessel.
Application
Panama Chocks are designed specifically to guide mooring lines on deck. They act as a guide to feed a line or wire in a particular direction while minimizing chaffing. They are typically welded to the deck of a vessel.
Panama Chocks are designed specifically to guide mooring lines on deck. They act as a guide to feed a line or wire in a particular direction while minimizing chaffing. They are typically welded to the deck of a vessel.
Material
ASTM A27-70-36 Cast Steel
ASTM A27-70-36 Cast Steel
| Model Number | Part Number | Description | SWL (ton) | Weight Total Lbs (Kgs.) |
|---|---|---|---|---|
| UMC-531-1014 | 08370-301A | Panama Chock 10×14 | 16.9 | 343 (156) |
| UMC-531-1218 | 08372-301A | Panama Chock 12×18 | 47.2 | 670 (304) |
| UMC-531-1122 | 08374-301A | Panama Chock 11×22 | 562 (255) | |
| UMC-531-1224 | 08372-302A | Panama Chock 12×24 | 1052 (477) |
