Description
Features
- Hex Head Bolt – Zinc Plated Steel
- Hex Nut – Stainless Steel
- Washer – Brass
- Gasket – Nitrile Rubber
Description
UMC’s complete line of multi-bolt manholes serve as a great option for applications where frequent access to a compartment is not required. These manholes feature simple designs, utilize high strength steel and are available in different configurations and hardware combinations to meet your requirements.
UMC’s complete line of multi-bolt manholes serve as a great option for applications where frequent access to a compartment is not required. These manholes feature simple designs, utilize high strength steel and are available in different configurations and hardware combinations to meet your requirements.
Feature Description
Various hardware options available upon request.
High-quality UV resistant BUNA-N Rubber gaskets ensure a water tight seal resistant to cracking and memory fatigue.
Meets ABS (American Bureau of Shipping) requirements for design and materials.
Various hardware options available upon request.
High-quality UV resistant BUNA-N Rubber gaskets ensure a water tight seal resistant to cracking and memory fatigue.
Meets ABS (American Bureau of Shipping) requirements for design and materials.
Application
Raised Manholes are typically found along the gunnels of a barge as well as on the bow/ stern and on top of cargo compartments or tanks. They are used to access wing tanks, the rake compartment, cargo compartments/ tanks, etc. They can also be mounted vertically to bulkheads. Ideal for tank top covers, inspection access, clean outs and more.
Raised Manholes are typically found along the gunnels of a barge as well as on the bow/ stern and on top of cargo compartments or tanks. They are used to access wing tanks, the rake compartment, cargo compartments/ tanks, etc. They can also be mounted vertically to bulkheads. Ideal for tank top covers, inspection access, clean outs and more.
Material
Steel (ASTM A36)
Painted Primer Grey
Steel (ASTM A36)
Painted Primer Grey
| Model Number | Part Number | Description | Clear Opening In. (mm) | Weight Total Lbs (Kgs.) |
|---|---|---|---|---|

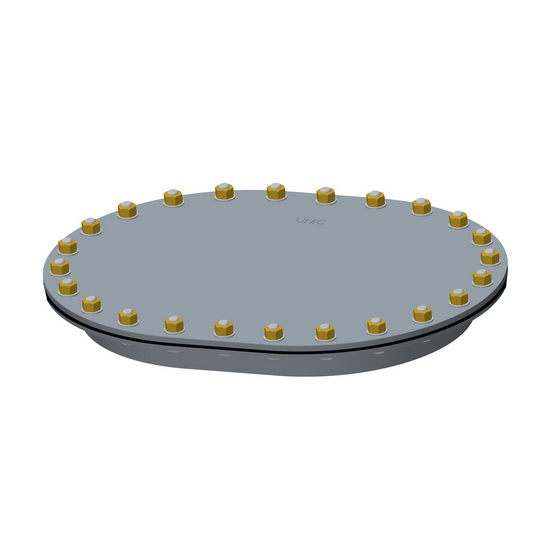

| UMC-502 | 02580-101A | Raised 18×24 24-Bolt Manhole w/ 2.5″ Coaming | 18 x 24 (457 x 610) | 106 (48) |
