Description
Features
- Dog Arms – Stainless Steel
- Hinge Pin – Stainless Steel
- Hinge Spring – Stainless Steel
- Handwheel – Steel
- Gasket – Neoprene
Description
Scuttle Hatches are fabricated using high quality ASTM A36 Steel. All raised round scuttles are quick acting and feature 3 Dogs, an escape hand wheel and spring assisted hinges for easy opening and closing.
Scuttle Hatches are fabricated using high quality ASTM A36 Steel. All raised round scuttles are quick acting and feature 3 Dogs, an escape hand wheel and spring assisted hinges for easy opening and closing.
Application
Quick Acting Scuttle hatches are typically found along the gunnels of a vessel as well as on the bow and stern. They provide quick an easy access to compartments below deck.
Quick Acting Scuttle hatches are typically found along the gunnels of a vessel as well as on the bow and stern. They provide quick an easy access to compartments below deck.
Material
Steel (ASTM A36)
Painted Primer Grey
Steel (ASTM A36)
Painted Primer Grey
| Model Number | Part Number | Description | Clear Opening In. (mm) | Weight Total Lbs (Kgs.) | Cutout Dimension in. (mm) | Autocad PDF/DXF/XML |
|---|---|---|---|---|---|---|

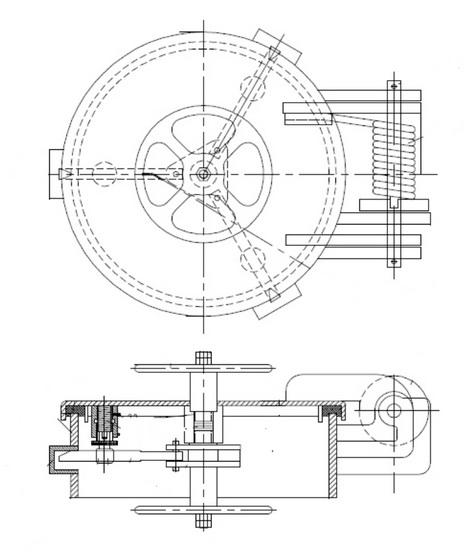

| UMC-546 -18 | 06122-114A | Raised 18″ Round Scuttle Hatch | 18 (458) | 140 (64) |
