Description
Features
- Dog Arms – Stainless Steel
- Hinge Pin – Stainless Steel
- Hinge Spring – Stainless Steel
- Handwheel – Steel
- Gasket – Neoprene
Description

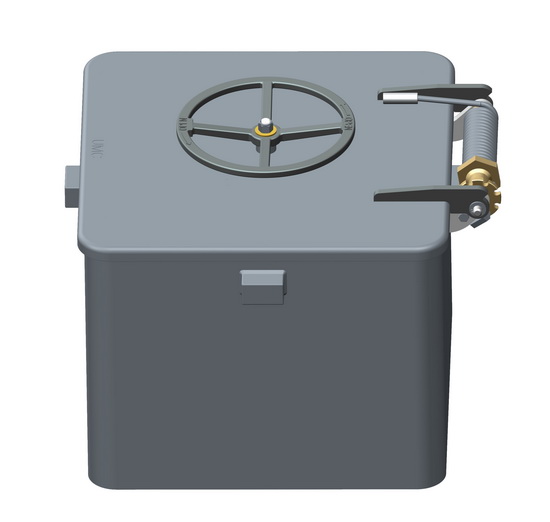

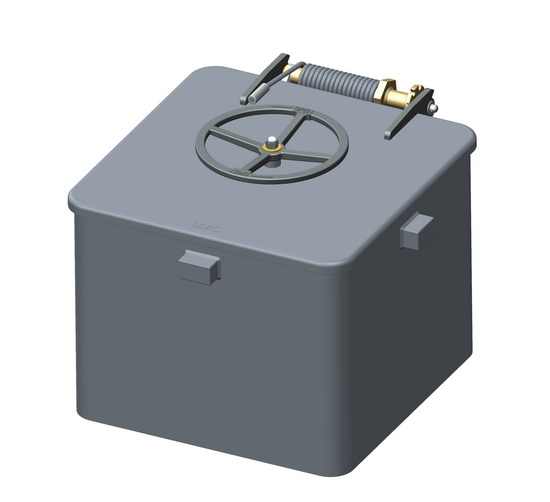

Scuttle Hatches are fabricated using high quality ASTM A36 Steel. All raised square scuttles are quick acting and feature 4 Dogs, an escape hand wheel, and spring assisted hinges for easy opening and closing.
Scuttle Hatches are fabricated using high quality ASTM A36 Steel. All raised square scuttles are quick acting and feature 4 Dogs, an escape hand wheel, and spring assisted hinges for easy opening and closing.
Feature Description
Meet ABS (American Bureau of Shipping) requirements for design and materials.
Meet ABS (American Bureau of Shipping) requirements for design and materials.
Application
Quick Acting Scuttle hatches are typically found along the gunnels of a vessel as well as on the bow and stern. They provide quick an easy access to compartments below deck.
Quick Acting Scuttle hatches are typically found along the gunnels of a vessel as well as on the bow and stern. They provide quick an easy access to compartments below deck.
Material
Steel (ASTM A36)
Painted Primer Grey
Steel (ASTM A36)
Painted Primer Grey
| Model Number | Part Number | Description | Weight Total Lbs (Kgs.) | Clear Opening In. (mm) | Cutout Dimension in. (mm) | Autocad PDF/DXF/XML |
|---|---|---|---|---|---|---|
| UMC-615-2424 | 06122-111A | Raised 24×24 Scuttle Hatch | 500 (227) | 24 x 24 (610 x 610) | ||
| UMC-615-3030 | 06122-112A | Raised 30×30 Scuttle Hatch | 700 (318) | 30 x 30 (762 x 762) | ||
| UMC-615-3636 | 06122-113A | Raised 36×36 Scuttle Hatch | 900 (408) | 36 x 36 (914 x 914) |
