Description

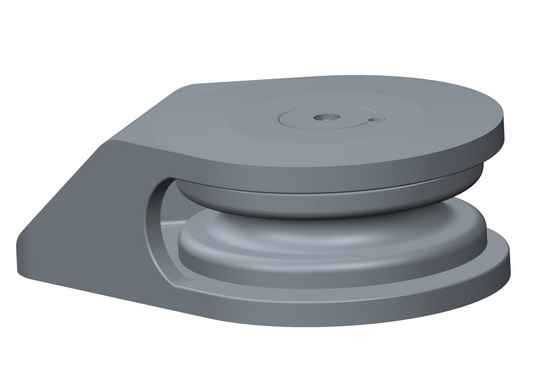

UMC’s Roller Chocks are industry standard. They are made from ASTM A27 cast steel and are built to withstand the toughest conditions.
UMC’s Roller Chocks are industry standard. They are made from ASTM A27 cast steel and are built to withstand the toughest conditions.
Feature Description
The ASTM A27 cast steel sheave features a 5.625″ throat diameter with a radius of 0.5″. The UMC-927 also features a grease fitting to lubricate the roller pin.
The ASTM A27 cast steel sheave features a 5.625″ throat diameter with a radius of 0.5″. The UMC-927 also features a grease fitting to lubricate the roller pin.
Application
Roller Chocks are designed primarily for changing the direction of a line or wire while minimizing chaffing. They are typically placed on the pushboat/ towboat.
Roller Chocks are designed primarily for changing the direction of a line or wire while minimizing chaffing. They are typically placed on the pushboat/ towboat.
Material
ASTM A27-70-36 Cast Steel
ASTM A27-70-36 Cast Steel
| Model Number | Part Number | Description | Weight Total Lbs (Kgs.) | Autocad PDF/DXF/XML |
|---|---|---|---|---|
| UMC-927 | 08830-101A | Roller Chock | 50 (23) |
