Description
Description
UMC® offers a wide range of Single Bitts for any deck application. Sizes range from a minimum bollard diameter of 8” up to a bollard diameter of 12”. Our Single Bitts are made from ASTM A27 cast steel and are built to withstand the toughest conditions. Models are available with Horns as well as in Thru-Deck and Flush Weld styles. Also available are Heavy Duty models with thicker side walls.
UMC® offers a wide range of Single Bitts for any deck application. Sizes range from a minimum bollard diameter of 8” up to a bollard diameter of 12”. Our Single Bitts are made from ASTM A27 cast steel and are built to withstand the toughest conditions. Models are available with Horns as well as in Thru-Deck and Flush Weld styles. Also available are Heavy Duty models with thicker side walls.
Feature Description
UMC’s Single Bitts are sold as-cast with no surface paint or finish to maintain quick, easy and safe weld-ability to the deck of any barge or workboat.
UMC’s Single Bitts are sold as-cast with no surface paint or finish to maintain quick, easy and safe weld-ability to the deck of any barge or workboat.
Application
Single Bitts are designed primarily to be used with line or wire for barge coupling, checking, or mooring.
Single Bitts are designed primarily to be used with line or wire for barge coupling, checking, or mooring.
Material
ASTM A27-70-36 Cast Steel
ASTM A27-70-36 Cast Steel
| Model Number | Part Number | Description | Bollard Diameter in. (mm) | Weight Total Lbs (Kgs.) | Autocad PDF/DXF/XML |
|---|---|---|---|---|---|

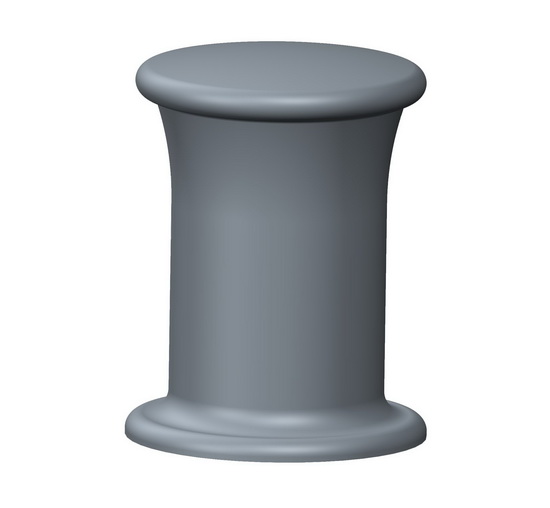

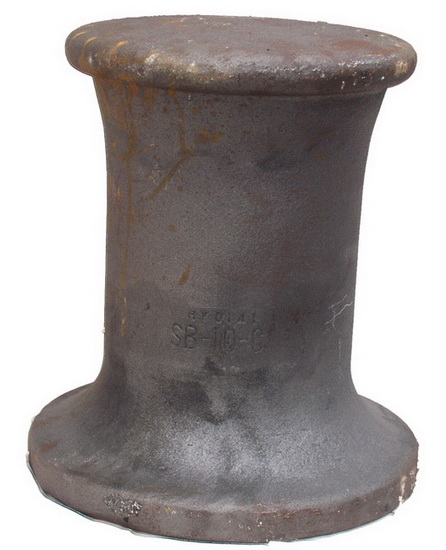

| UMC-SB10 | 01140-301A | 10″ Round Base Flush-Weld Single Bitt | 10 (254) | 190 (86) | |
| UMC-SB12 | 01141-301A | 12″ Round Base Flush Weld Single Bitt | 12 (305) | 340 (154) |
