Description
Description
UMC® offers a wide range of Single Bitts for any deck application. Sizes range from a minimum bollard diameter of 8” up to a bollard diameter of 14”. Our Single Bitts are made from ASTM A27 cast steel and are built to withstand the toughest conditions. Models are available with Horns as well as in Thru-Deck and Flush Weld styles. Also available are Heavy Duty Models with thicker side walls.
UMC® offers a wide range of Single Bitts for any deck application. Sizes range from a minimum bollard diameter of 8” up to a bollard diameter of 14”. Our Single Bitts are made from ASTM A27 cast steel and are built to withstand the toughest conditions. Models are available with Horns as well as in Thru-Deck and Flush Weld styles. Also available are Heavy Duty Models with thicker side walls.
Feature Description
UMC’s Single Bitts are sold as-cast with no surface paint or finish to maintain quick, easy and safe weld-ability to the deck of any barge or workboat.
UMC’s Single Bitts are sold as-cast with no surface paint or finish to maintain quick, easy and safe weld-ability to the deck of any barge or workboat.
Application
Single Bitts are designed primarily to be used with line or wire for barge coupling, checking, or mooring. UMC’s Thru Deck Single Bitts are the perfect solution for towing applications where more rigidity is needed to prevent the deck fitting from tearing off the deck under extreme load situations. Additionally, the Horn featured on these Single Bitts prevents line or wire from “riding up” the bollard during a tow as well as allows for easy and controlled checking.
Single Bitts are designed primarily to be used with line or wire for barge coupling, checking, or mooring. UMC’s Thru Deck Single Bitts are the perfect solution for towing applications where more rigidity is needed to prevent the deck fitting from tearing off the deck under extreme load situations. Additionally, the Horn featured on these Single Bitts prevents line or wire from “riding up” the bollard during a tow as well as allows for easy and controlled checking.
Material
ASTM A27-70-36 Cast Steel
ASTM A27-70-36 Cast Steel
| Model Number | Part Number | Description | Bollard Diameter in. (mm) | Weight Total Lbs (Kgs.) |
|---|---|---|---|---|

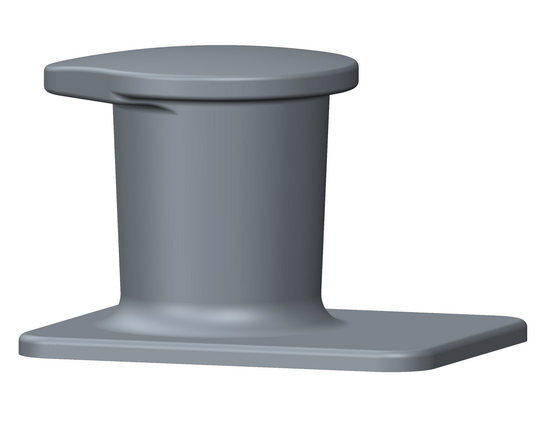

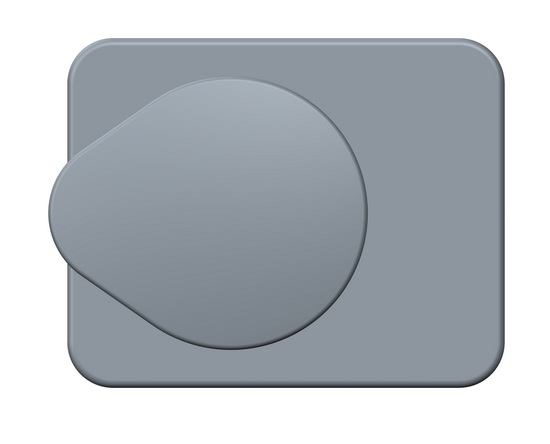

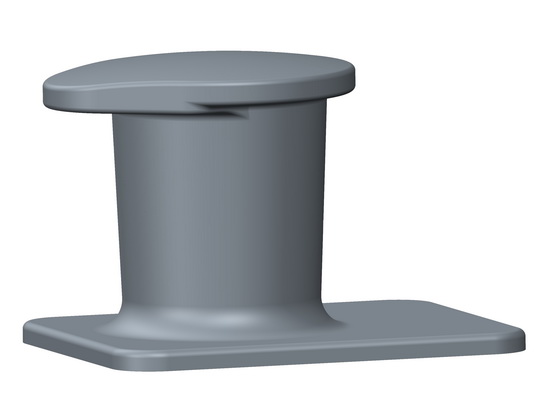

| UMC-SB14H | 01133-301A | 14″ Rectangle Base Flush-Weld Single Bitt w/ Horn | 14.25 (362) | 550 (250) |
