Description

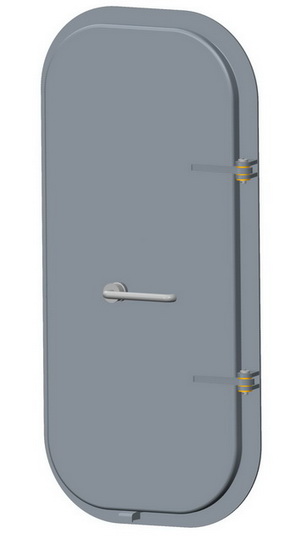

Lever Arm Weathertight doors are perfect for quick and easy access to any compartment on your vessel above the waterline. Our doors are fabricated from high quality ¼” steel plate and built to ABS and Lloyd’s Specifications. These doors feature 6 dogs and are built to provide continuous trouble-free use. Various standard sizes are available in both right and left hand orientation.
Lever Arm Weathertight doors are perfect for quick and easy access to any compartment on your vessel above the waterline. Our doors are fabricated from high quality ¼” steel plate and built to ABS and Lloyd’s Specifications. These doors feature 6 dogs and are built to provide continuous trouble-free use. Various standard sizes are available in both right and left hand orientation.
Feature Description
Opening orientation can be determined by standing on the outside of the compartment with the door swinging toward you. Right-hand doors will have the hinges on the right from this perspective. Conversely, a left-hand door will have the hinges on the left.
Opening orientation can be determined by standing on the outside of the compartment with the door swinging toward you. Right-hand doors will have the hinges on the right from this perspective. Conversely, a left-hand door will have the hinges on the left.
When Ordering Please Specify:
Clear Opening – 28″ x 72″ / 30″ x 72″
Opening Orientation – Left Hand Door / Right Hand Door
Application
Weathertight Doors are commonly found on exterior and interior bulkheads of any vessel.
Weathertight Doors are commonly found on exterior and interior bulkheads of any vessel.
Material
Steel (ASTM A36)
Painted Primer Grey
Steel (ASTM A36)
Painted Primer Grey
| Model Number | Part Number | Description | Weight Total Lbs (Kgs.) | Handeling | Clear Opening In. (mm) | Autocad PDF/DXF/XML |
|---|---|---|---|---|---|---|
| UMC-WTD-LA-28X72-R | 06121-103A | Lever Acting – 28″ x 72″ Opening / Right Handed | 500 (227) | RH | 28″ X 72″ (711 x 1829) | |
| UMC-WTD-LA-28×72-L | 06121-103B | Lever Acting – 28″ x 72″ Opening / Left Handed | 500 (227) | LH | 28″ X 72″ (711 x 1829) | |
| UMC-WTD-LA-30×72-R | 06121-103C | Lever Acting – 30″ x 72″ Opening / Right Handed | 526 (239) | RH | 30″ X 72″ (762 x 1829) | |
| UMC-WTD-LA-30×72-L | 06121-103D | Lever Acting – 30″ x 72″ Opening / Left Handed | 526 (239) | LH | 30″ X 72″ (762 x 1829) |
